(VRLA) Lead Acid vented
LEAD-LINE
Voltage
6 ~ 12 V
Capacity
0.8 ~ 65 Ah

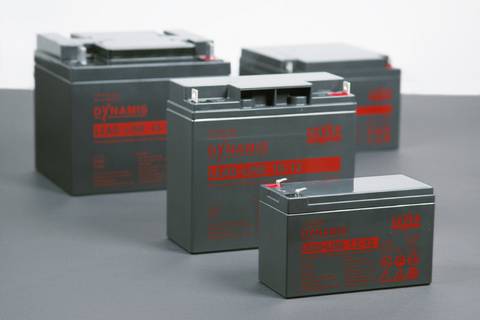

DYNAMIS LEAD-LINE - Maintenance free AGM batteries for standard usage.
The main advantages of this battery type are, the absolute maintenance free construction,
the high reliability and perfect quality in combination with the long usage life at an excellent
price ratio.
The battery is designed for standard use and available with capacities between 1 Ah to 100 Ah.
Standard values are available ex stock.
The more important types are also VdS-approved.
We offer also the correct charging technology for the entire range.
Option for all types: 94-HB & 94V-0 flame retardant case available!
Please ask for Packing Units and Times of Delivery.
Part no.
Type
V / Ah
VdS
Dim. (mm)
Weight (kg)
Terminals
60.05035
6 V / 1 Ah
-.-
L51/W42/H55
0.3
S
60.05002
6 V / 1.2 Ah
-.-
L97/W25/H51.5
0.3
S
60.05003
6 V / 2 Ah
-.-
L75/W51/H53
0.54
S
60.05005
6 V / 4 Ah
-.-
L70/W46.5/H107
0.81
S
60.05006
6 V / 7 Ah
-.-
L116/W50/H99
1.39
S
60.05007
6 V / 10 Ah
-.-
L151/W50/H94
1.7
S
60.05008
6 V / 20 Ah
-.-
L157/W83/H125
3.9
G5
60.05009
12 V / 0.8 Ah
-.-
L96/W25/H62
0.4
wire / plug
60.05001
12 V / 0.8 Ah
-.-
L96/W25/H62
0.4
wire / plug
60.05010
12 V / 1.2 Ah
TBA
L97/W43/H59
0.6
S
60.05011
12 V / 2.2 Ah
G 104054
L178/W34/H66
0.95
S
60.05012
12 V / 2.3 Ah
G 124006
L178/W34/H66
0.95
S
60.05014
12 V / 2.9 Ah
-.-
L79/W56/H107
1.2
S
60.05029
12 V / 3.3 Ah
-.-
L134/W67/H65.5
1.30
S
60.05030
12 V / 5 Ah
-.-
L90/W70/H107
1.9
S
60.05015
12 V / 5 Ah
-.-
L90/W70/H107
1.9
SR
60.05025
12 V / 7 Ah
G 114054
L151/W65/H102
2.25
S
60.05016
12 V / 7.2 Ah
G 110064
L151/W65/H102
2.45
S
60.05017
12 V / 7.2 Ah
G 110064
L151/W65/H102
2.45
SR
60.05018
12 V / 10 Ah
-.-
L151/W65/H118
3.31
SR
60.05027
12 V / 12 Ah
G 115030
L151/B100/H97.5
3.7
S
60.05020
12 V / 12 Ah
-.-
L151/W98/H97.5
4.3
SR
60.05028
12 V / 18 Ah
G 115031
L181/W76/H167
5.6
G5
60.05022
12 V / 26 Ah
G 104059
L166/W175/H125
9.3
G5
60.05023
12 V / 45 Ah
G 104060
L198/W166/H171
14.1
G6
60.05024
12 V / 65 Ah
G 104061
L350/W166/H174
23.3
G6
